Transportation Project Questionnaire

High Growth Area Needs Questionnaire

Project Information

Agency Name	TxDOT Houston District

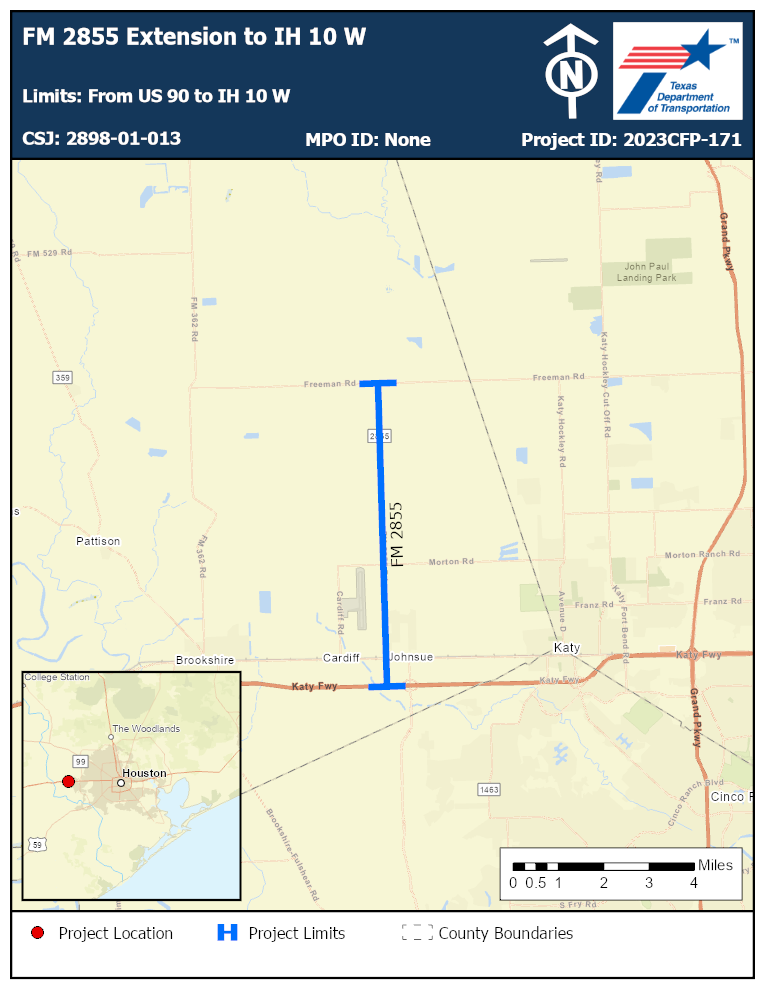

Project Title	FM 2855 Extension to IH 10 W
Facility/Street/Highway	FM 2855
Limits	From US 90 to IH 10 W
Description	Reconstruct and Widen from 2 to 4 lanes and extend FM 2855 (currently known as Brookline Rd) to IH 10 W
Timeframe	Medium Term (6-10 Years)
Estimated Cost	$35,000,000.00

Investment Category-Focused Criteria

1. Define High Growth Area Need: Provide a narrative to explain how proposed project is needed to serve a high growth where project is located. (Please provide quantifiable data that demonstrates high growth in population, employment, commercial development or daily traffic.)

The project is located in a high growth area. The population is projected to grow by 373.3% and jobs are projected to increase by 111.8%. While land use changes have not yet been announced or modeled, additional residential land uses will be needed in the future to accommodate the projected growth.This segment of FM 2855 will benefit from improved connectivity and improved level of service that will result from this improvement. The average daily volume of traffic on this segment in 2021 was 152, with 3.2 percent of that being truck traffic. By 2041 daily traffic volume is not expected to increase. Additional growth projections are available in the Waller County Transportation Plan, Appendix C Growth Matrix The purpose of the project is to improve capacity, connectivity, level of service, and safety of the project segment. The added capacity will improve regional connectivity for all modes while also reducing congestion and improving safety by reducing primary and secondary crashes due to congestion and by bringing the segment of FM 2855 up to TxDOT and FHWA safety standards.

2. Is the proposed project recommended in a statewide, regional, or local plans?

Yes

2a. If yes, please provide link to the plan.

https://www.txdot.gov/projects/projects-studies/houston/real-2-brookshire-katy-implementation-plan.html

3. Please provide proposed project description (detailed project scope).

Reconstruct and Widen from 2 to 4 lanes and extend FM 2855 (currently known as Brookline Rd) to IH 10 W. Sidewalks/Shared use paths could be apart of this project.

3a. Does the project provide access to new planned land use development (residential or commercial), or connects existing discontinuous networks?

Yes

3a-i. If yes, explain.

The project is located in a high-growth area. The population is projected to grow by 373.3% and jobs are projected to increase by 111.8%. No notable land use changes were announced or modeled. The intersection of US 90 and FM 2855 near IH 10 W is heavily industrialized and more warehouses are on the way. The REAL Plan 2.0 study area predicts a freight hub nearby this vicinity. Additional growth projections are available in the Waller County Transportation Plan, Appendix C Growth Matrix

3b. Does the project expand existing networks to alleviate anticipated congestions?

Yes

3b-i. If yes, explain.

This project will add capacity. Adding capacity will relieve congestion on the facility by allowing for a reduced vehicle to capacity ratio. Further, it will allow more room for traffic to avoid crashes on the segment, reducing congestion caused by crashes.

3b-ii. What is the estimated Level of Service after the project is completed.

LOS A

4. Does the proposed project provide an alternative route to existing corridor (Road or commuter transit)?

Yes

4a. If yes, explain.

FM 2855 is in the part of Waller County that has many parallel thoroughfares on a square mile street grid network.

5. Is the proposed project located on a facility identified as a hurricane evacuation route in any regional or local plans?

5a. If no, is the proposed project located on a facility that functions as an alternative to an evacuation route?

Yes

5a-i. If yes, explain.

Model.HighGrowthAreaNeedsQuestionnaire.InvestmentCategory5ai

Other Investment Category Focused Criteria

1. Was the project scored under Regional Goods Movement Category?

Yes

2. Please provide a narrative explaining how the proposed project improves traffic operations. Within the narrative, please include if the proposed project includes construction of truck only lanes or managed truck only lanes, construction of an interchange, or intersection improvements.

This segment of FM 2855 will benefit from improved connectivity and improved level of service that will result from this improvement. The average daily volume of traffic on this segment in 2021 was 152, with 3.2 percent of that being truck traffic. By 2041 daily traffic volume is not expected to increase. The purpose of the project is to improve capacity, connectivity, level of service, and safety of the project segment. The added capacity will improve regional connectivity for all modes while also reducing congestion and improving safety by reducing primary and secondary crashes due to congestion and by bringing the segment of FM 2855 up to TxDOT and FHWA safety standards.

3. Please provide a narrative explaining how the proposed project improves walking and biking conditions. Within the narrative, please explain if the proposed project scope includes construction of a new or improved existing bicycle and pedestrian infrastructure on a project facility or in the vicinity of the project.

Sidewalks will be built according to the schematic. The addition of sidewalks will create transportation alternatives and allow pedestrians greater access to services and improve quality of life.

4. Please provide a narrative explaining how the proposed project improves traffic conditions for transit services (local, express, signature, or commuter).

REAL Plan 2.0 proposed transit improvements or METRO Vanpool services could be provided. Otherwise, there is no transit on this facility at this time.

5. Please provide a narrative explaining how the proposed project will reduce inoperability for significant periods due to infrastructure damaged by a collision with vehicles such as trucks, ships, and barges.

The project will reconstruct and widen lanes to allow more space to move disabled vehicles and to better maintain flow on the facility after vehicle collisions.

6. Please provide a narrative explaining how the proposed project will improve state of good repair and extend the service life of the project facility.

Pavement Score: Fair Narrative: This segment contains pavement in Fair condition, according to TxDOT and FHWA guidelines. In a widening/reconstruction project like this project, pavement is removed and new pavement is constructed, thus increasing the state of good repair and extending the service life of the facility.

Planning Factors Criteria

1. What is the existing fatality crash rate at the project location? Regional crash data is available online on the crash data viewer. H-GAC staff will provide assistance in calculating the crash rates upon request.

3.801

2. What is the existing serious injury crash rate at the project location? Regional crash data is available online on the crash data viewer. H-GAC staff will provide assistance in calculating the crash rates upon request.

8.87

3. Please provide a narrative explaining how the proposed project reduces expected fatality and serious injury crashes. Narrative must include specific improvements (work types) included in the project scope. Crash reduction factors associated with specific work types can be found in the safety benefits calculation template. H-GAC staff can provide assistance in gathering the crash reduction factors upon request.

Crash rates for this segment are per 100 million VMT. The fatality rate is 3.801, higher than the regional average (1.23), and the serious injury rate is 8.87, higher than the regional average, (6.18). The planned reconstruction and widening of the roadway aim to increase its capacity, effectively mitigating primary and secondary crashes resulting from congestion. As part of this initiative, sidewalks will be constructed in accordance with the provided schematic. The addition of pedestrian infrastructure will allow pedestrians to safely use the facility and reduce points of conflicts with vehicles, thus further contributing to the safety and accessibility of the area. The consolidated crash reduction factor for this project is 110% as a result installing pedestrain and bicycle infrastructure (WC 407) and converting a 2-lane facility to a 4-lane divided (WC 538). The reconstruction and widening of the roadway will provide additional capacity to the roadway and reduce primary and secondary crashes caused by congestion.

Resiliency

1. Please select the vulnerability to flooding score at the project location based on the Regional Resiliency tool. H-GAC staff can provide assistance with the regional resiliency tool upon request.

Low

2. Please select the criticality score at the project location based on the Regional Resiliency tool. H-GAC staff can provide assistance with the regional resiliency tool up on request.

Model.HighGrowthAreaNeedsQuestionnaire.Resiliency2

3. Please provide a narrative explaining how the proposed project reduces vulnerability to flooding. The narrative must include specific improvements such as drainage improvements that are included in the scope.

All current projects are being designed to meet and/or exceed ATLAS-14 drainage standards.

Access/Connectivity

Please enter the household population located within a quarter mile buffer of the project location: 1a. Low-Income

3,636

1b. Hispanic and Non-Hispanic Minorities

7,511

12. Does the proposed project improve or provide new connectivity to a medical facility within a quarter mile buffer of the project location?

3. Does the proposed project improve or provide new connectivity to a school/college/university within a quarter mile buffer of the project location?

4. Does the proposed project improve or provide new connectivity to a social services facility within a quarter buffer of the project location?

Environmental Justice

Please enter household population located within quarter mile buffer of the project location. H-GAC staff can assist in gathering the data. 1a. Low-Income

3,636

1b. Hispanic and Non-Hispanic Minorities

7,511

1c. Household Population Under Poverty

855

1d. Disabled Persons

502

1e. Elderly Persons

397

1f. Limited English Proficiency

313

2. What is the average Livable Center Need Index within quarter mile buffer of the project location? H-GAC staff can assist in gathering the data.

14.10

3. Please provide a narrative explaining how the proposed project provides benefits to vulnerable populations. Benefits include safety improvements, construction of or improvements to ped/bike facilities, or improvements to transit stops.

4. Please provide a narrative explaining how the proposed project avoids or mitigates adverse effects to vulnerable populations. A list of adverse effects was provided in detailed criteria document.

The area surrounding the project segment has a lower low-income population (8.21%) as compared to the regional average of 13.5%. The area surrounding the project segment has a lower minority population (49.71%) as compared to the regional average of 65% minority. TxDOT’s Environmental Process is designed to ensure compliance with Title VI of the Civil Rights Act of 1964, and the Executive Order on Environmental Justice. Standard practice is to implement projects that provide user safety and operational efficiency while taking into account environmental quality and impacts to surrounding communities. In practice this means identifying and assessing potential project impacts, then proposing measures to avoid, minimize and/or mitigate disproportionately high and adverse effects to Environmental Justice Populations. For example, the project will improve drainage to ATLAS-14 standards, which will mitigate impacts from added capacity to vulnerable populations.

Impacts on Natural and Cultural Resources

1. Please provide a narrative explaining how the proposed project avoids or mitigates impacts to natural (flood plains, wetlands) and cultural (historic and archeological sites) resources. H-GAC staff can provide assistance in identifying natural and cultural resources located within a quarter mile buffer of the project location.

This project is in conceptual development. If required, the appropriate Environmental Document (Categorical Exclusion, Environmental Assessment, or Environmental Impact Statement) will be conducted to identify, avoid or mitigate potential impacts to the natural or human environment.

2. Please provide Nitrogen Oxides (NOx) and Volatile Organic Compounds (VOC) reductions provided by the project. H-GAC staff can provide assistance in calculating NOx and VOC reductions

NOx: 0; VOC:0

Innovation

1. Does the project propose to implement new infrastructure technologies to enhance accessibility, mobility, multimodalism, resiliency, reliability, or traffic operations?

Yes

1a. If yes, please explain.

Brand new Signal Phasing and timing (SpAT) signals will be installed on this segment of the project (Related to CSJ 0912-00-701 that will install 1,100+ of these signals on all traffic lights on TxDOT HOU district roads)

2. Does the project propose to implement new autonomous/connected vehicle technology?

Yes

2a. If yes, please explain.
